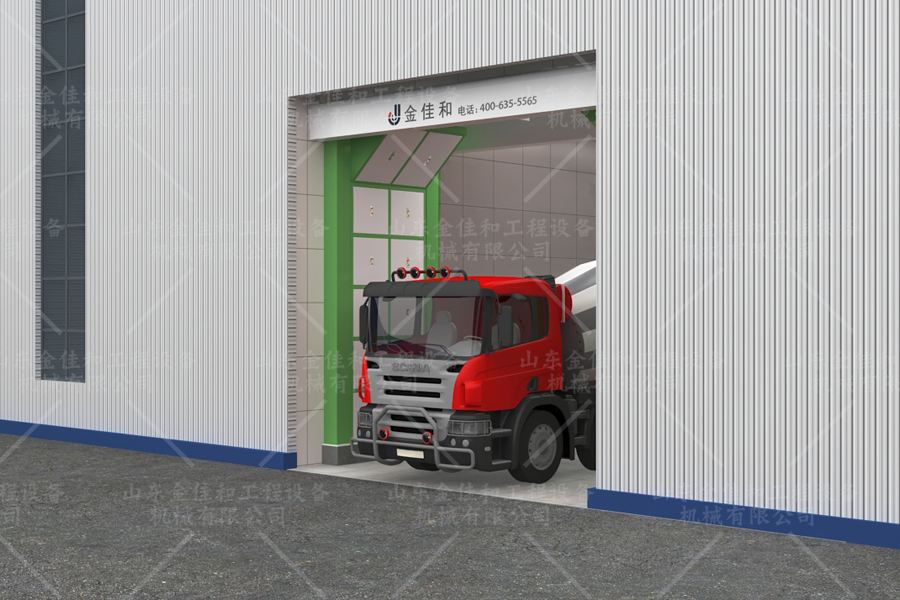

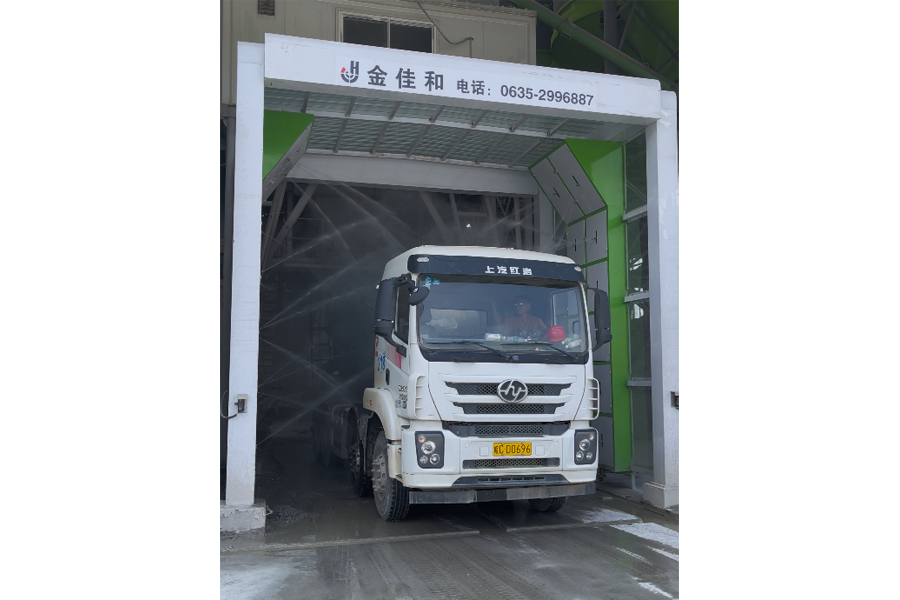

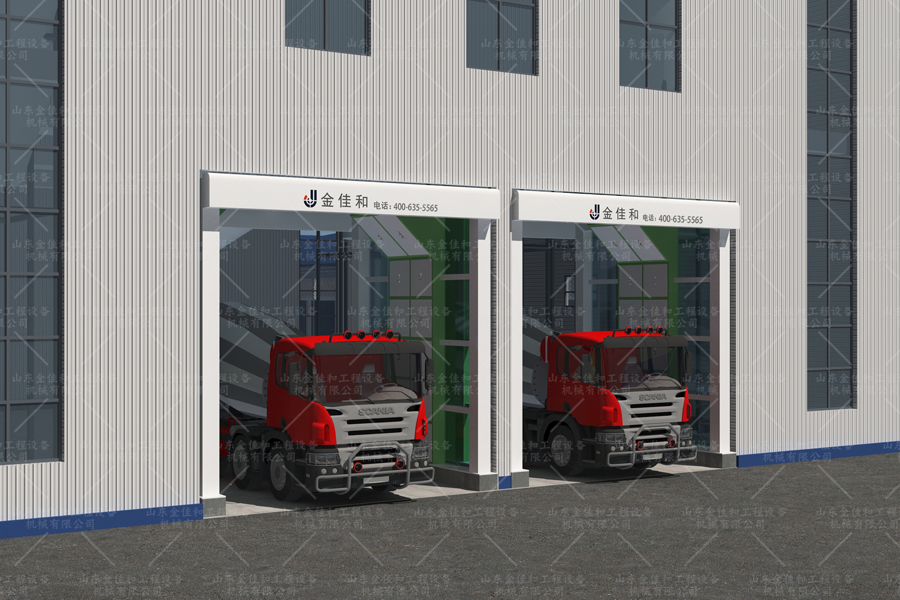

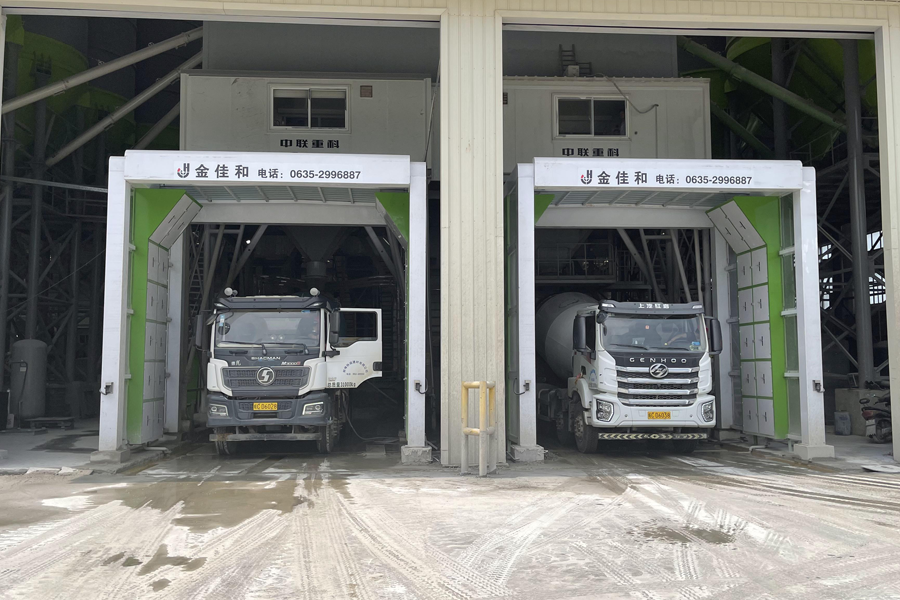

LX-510LXJ Gantry Truck Wash System (Internal)

Product Introduction:

LX-510LXJ Gantry Truck Wash Syste (Internal)

The gantry-style vehicle washing machine manufactured by our company features a stylish, impressive design, and its enclosed operation effectively prevents wastewater spillage. Equipped with fountain-style pumps and oscillating high-pressure nozzles, it delivers comprehensive, multi-dimensional cleaning, efficiently removing concrete, mud, and other debris from the vehicle body—thereby thoroughly resolving the issue of construction vehicles polluting city roads. Since its launch, the product has received unanimous acclaim from a wide range of users.

> Automated wash cycle execution

> Saves up to 90% water

> Customization supported

> Reduces car washing costs

> Effectively control dust pollution

Send Inquiry

Description

Automated Precision for Zero-Pollution Concrete Logistics

The LX-510LXJ Gantry Truck Wash System delivers high-efficiency cleaning for commercial fleets. Featuring a motorized gantry frame, it automatically applies high-pressure water, specialized brushes, and rinse cycles to ensure a thorough, spotless clean in minimal time.

Item	LX-510LXJ Gantry Truck Wash Machine Specification
Equipment Size	151051005500mm
Cleaning Method	Vehicle-passing, the nozzle swings.
Number of spray nozzles	48Pcs
Nozzle Pressure	0.6 MPa
Water Consumption	333L/MIN
Control Method	Infrared sensing, wireless remote control
Main Water Pump	Material	Stainless steel impeller
	Model	7.5KW
	Max head	124 M
	Max flow rate	32m³/H
Swing Arm Reducer	Model	RV50-30-550W-AS
Oscillating motor	1.5KW
Electronic Parts	Delta, Delixi, Omron
Wall Body	Plastic-coated square box	Welded Square Box
Stainless Steel Nozzle	Stainless steel	48PCs
Sensor system	Sensor	Double beam
Pump	Fountain pump	7.5KW*1
Water Supply Pipeline	Pump Pressure	0.2 MPa
Water supply piping	Hot-dip galvanized pipe	Φ75

>> Features three operational modes

1. Mechanical Auto-Sensing: Automatic activation upon vehicle detection

2. Remote Control: Wireless operation

3. Manual Control: Direct panel operation

>> Water Management

Incorporates closed-loop water recycling technology
Requires only minimal fresh water replenishment during continuous operation
Delivers significant water savings

>> Industrial Applications

Ideal for controlling dust pollution at:

Construction sites
Mining operations
Cement product facilities
Coal mines
Power plants
Landfill sites

Ensures compliant, dust-free vehicle exit from controlled zones.
