Description

High Efficiency in a Compact Footprint

Maximize your productivity on the go with the JJHM35, designed for rapid deployment and superior performance. Delivering a theoretical output of 35m³/h with ±1% weighing accuracy, this plant ensures premium concrete quality even in tight spaces. With a setup time of under 24 hours and a footprint of just 25m², the JJHM35 minimizes installation costs by over 40%, making it the ultimate solution for dynamic construction projects requiring speed, precision, and mobility.

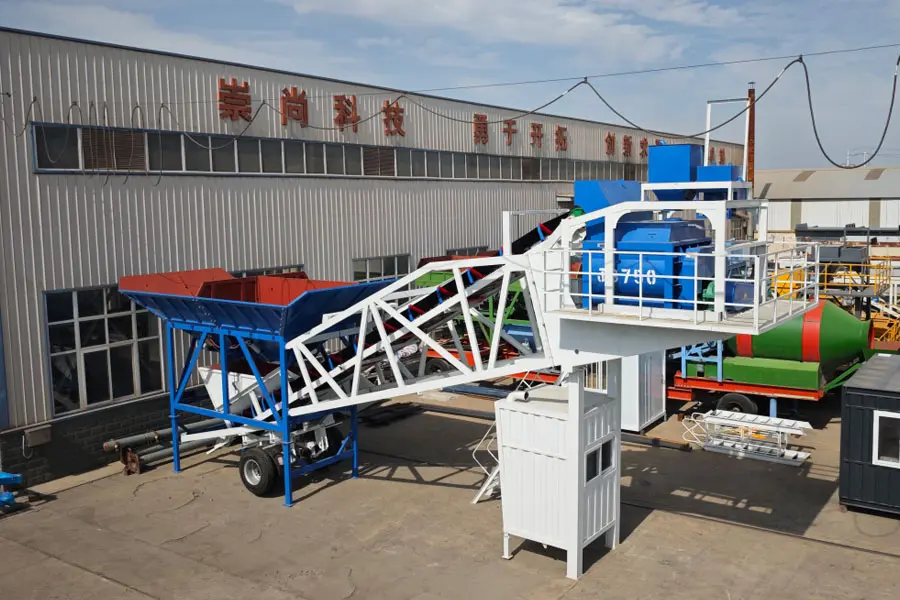

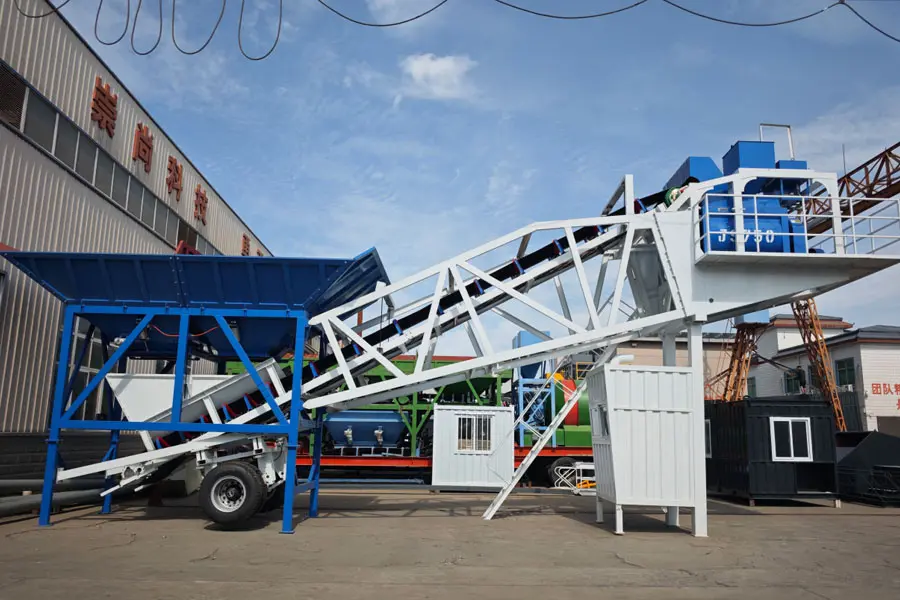

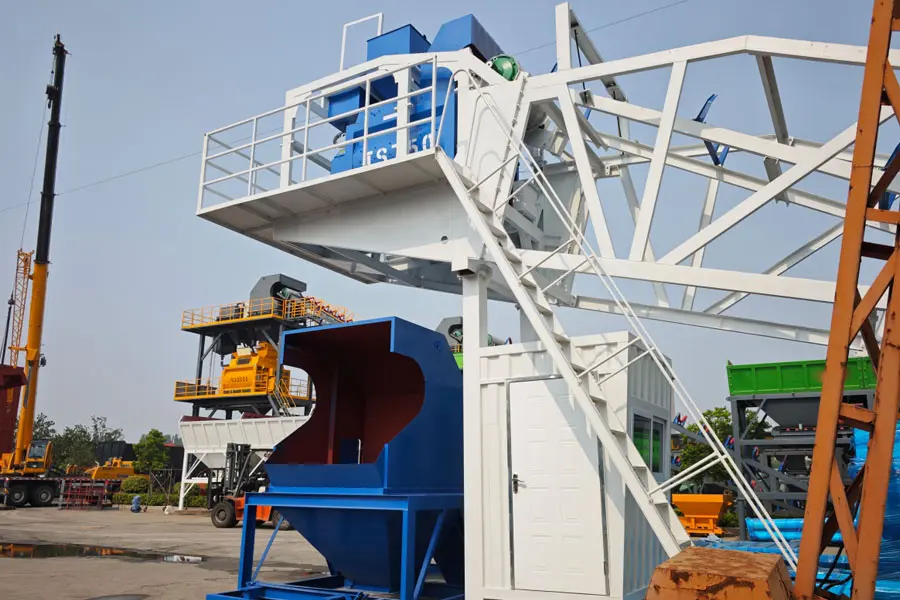

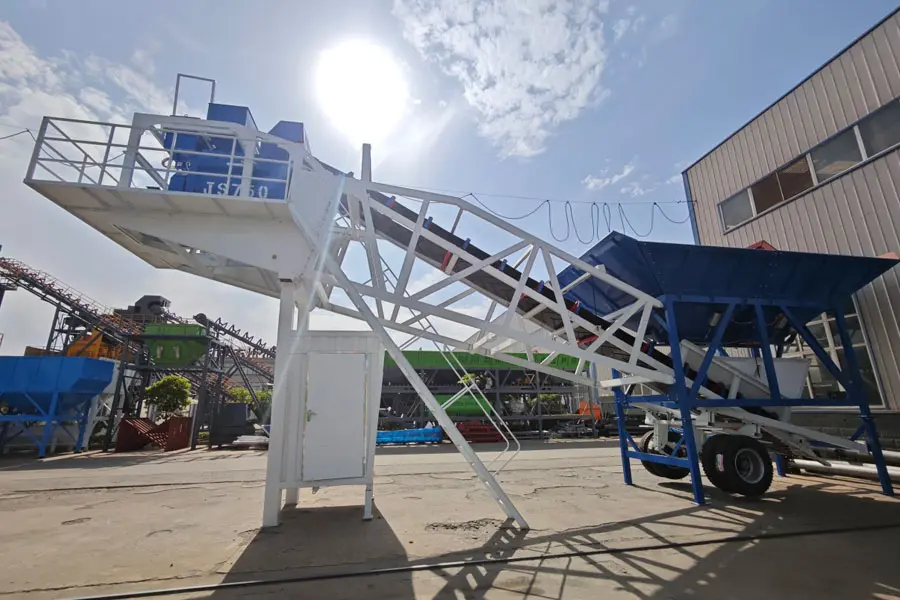

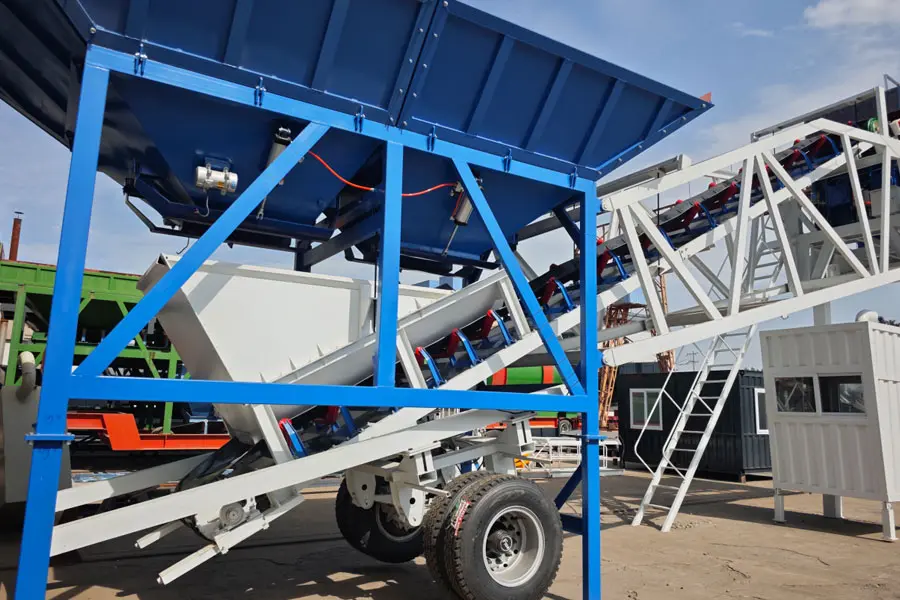

JJHM35 Mobile Concrete Batching Plant
Max Theory Productivity	35m³/h
Mixer	JS750
Storage Hopper Capacity	2×4m³
Maximum Size Of Aggregate	60/80mm
Discharge Height	3.8m
Charge Height	2.9m
Aggregate Measuring Accuracy	±2%
Cement Measuring Accuracy	±1%
Water Measuring Accuracy	±1%
Additive Measuring Accuracy	±1%
Total Power Including Screw Conveyor	60Kw
Power Voltage /Frequency(Optional)	AC440V/60HZ
Water Flow	9m³/h
Area Covered (L*W)	21X6m²

Mixing system	Patented multi-end sealing technology effectively prevents leakage and protects shaft ends. Wear-resistant scrapers and liners boast a service life of over 60,000 cycles. An automatic lubrication pump reduces labor costs and extends service life. The advanced motor and reducer drive system delivers stable performance.
Concrete Batching System	The sand silo is equipped with a large vibrator to ensure smooth and fast unloading. Optional cumulative weighing or separate weighing systems are available. High-precision sensors achieve an error of less than 2%.
Control System	Automatic or manual modes provide flexible adjustment and smooth operation. All wires and cables are coded for easy tracking and maintenance. An intelligent management system is included for task tracking, printing, and more. The computer + PLC control system ensures simple and stable operation, and the high-definition display clearly displays the operating status of each component.
Cement Silo	Vertical or horizontal silos are available. Capacities range from 50 to 300 tons and are customizable. Accessories include air shut-off devices, gate valves, pressure relief valves, level gauges, and dust collectors. High-quality steel ensures excellent sealing, stable support, and long service life.
Weighing System	Separate metering for powder, water, or additives ensures fast, high-precision weighing. Utilizing renowned brand sensors, the system achieves an error of less than 1%.
Conveying System	An inclination angle of up to 32 degrees allows for a compact footprint. A recovery belt conveyor allows for the reuse of spilled material. A full rain cover reduces dust emissions and can be customized for belt protection.
Cement Screw Conveyor	High speed, large conveying capacity, and high precision. Easy assembly, convenient connection, and reliable sealing.Widely applicable: Suitable for a variety of powdered, granular, or small lump materials. Customizable angles and lengths are also possible.

Product Features

JJHM35 Mobile Concrete Batching Plant is equipped with a robust JS750 horizontal double shaft concrete mixer and a precise PLD1200 aggregate batching machine. With a production capacity of 35 cubic meters per hour, the JJHM35 delivers high-quality concrete on demand.

Its mobility allows for easy transportation to various construction sites, while its modular design ensures quick and easy assembly and disassembly. Whether you're working on a remote site or a bustling urban area, the JJHM35 is the ideal choice for your concrete mixing needs

Application & Advantages

Highway/railway construction: Move with the progress of the project to reduce the distance of concrete transportation.
Post-disaster reconstruction: Quickly deploy to disaster areas to provide concrete.
Rural housing construction: Eliminate fixed station investment and reduce costs.
Military engineering: Rapid field construction to support military infrastructure construction.

Common faults

Inaccurate batching: check whether the sensor is calibrated to avoid the influence of aggregate moisture content on weighing.

Mixer jam: clean the agglomerated concrete regularly, especially before shutting down.

Structural deformation during movement: fix the legs and mixer main unit during transportation to avoid bumpy damage.

Daily maintenance

Lubricate the agitator shaft and conveyor belt bearings daily.

Clean the dust collector filter element weekly to prevent clogging.

Empty the water tank and gas tank during long-term shutdown to prevent rust.
