Product Introduction

Equipment performance characteristics and advantages

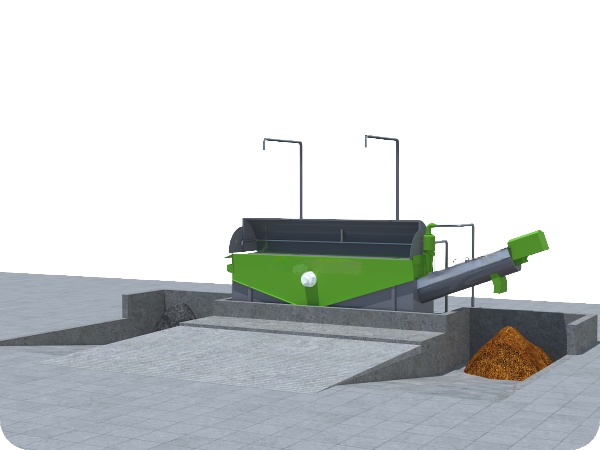

YX80 vibrating sand and gravel separator (eccentric shaft type): It is a product specially designed by our company for the recycling of concrete sand and gravel in the concrete industry. The industry standard for the inspection of this equipment is "Recycled Light and Coarse Aggregates from Construction Waste for Concrete" (Plan No. 2020-0457T-JC).

At present, the vibrating screen sand and gravel separator generally adopts a vibrating motor type, which is equipped with a vibrating motor of about 1.5KW on each side of the front and rear of the separator. This determines the upper limit of the vibration source power. When this separator works, only two vibrating motors vibrate regularly, and the sand and gravel are allowed to slide down freely by the inclined angle of the vibrating screen. If a large amount of concrete is poured into the sieve at the same time, it will inevitably cause sand and gravel accumulation, affecting the normal operation of the separator. Therefore, this equipment has limitations in use and design defects.

Our eccentric shaft vibrating sand and gravel separator has a fundamentally different design from others. This sand and gravel separator adopts an eccentric shaft design, which means that the motor drives the eccentric shaft to rotate, and the convex concave curve of the eccentric shaft drives the screen mesh to swing up, down, left, and right greatly, just like the movement of a dustpan, which disperses the sand and gravel poured into the screen mesh and shakes it in the direction of the stone bin. Even if the whole vehicle concrete is poured into the vibrating screen, it can instantly disperse and smoothly fall into the stone bin; This design is based on the vibration principle of the separation equipment between the stone carving factory and the sand and gravel factory. The vibration amplitude is large, the equipment operates stably, is sturdy and durable, and has strong sustainability; In addition, this separator screen adopts imported polyurethane design, high elasticity, narrow mesh at the top and wide mesh at the bottom, completely preventing filter blockage. If the screen blockage occurs under normal use, we will compensate the customer for all losses. This polyurethane material screen is currently only used by our company in China, which is also the reason why this sand and gravel separator has strong market competitiveness.

The screening capacity of YX80 vibrating sand and gravel separator is ≤ 60T/H, which can meet the separation task of 50 tank trucks in the mixing plant; The size of the stone separation is greater than or equal to 5mm, and the size of the sand separation is less than or equal to 5mm; The control system meets the functions of fully automatic, manual, and one key start; It is an essential concrete recycling and environmental protection equipment for concrete mixing plants.

Technical Parameters

Configuration of YX80 vibrating separator
