Ideal for Concrete Batching Plants

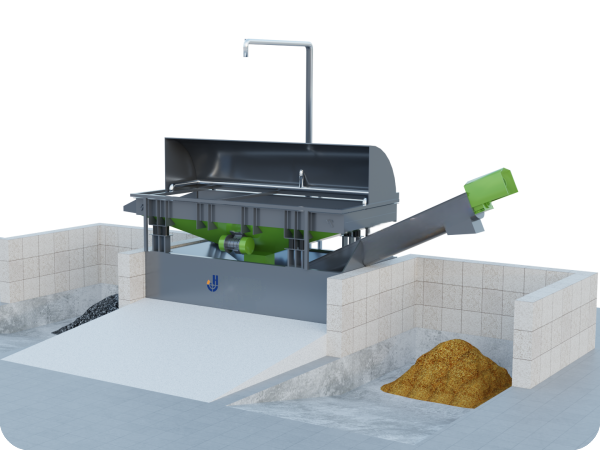

The JZF60D represents JINJIAHE's industry-standard solution for concrete aggregate recovery. Engineered for processing wash water from mixer trucks, this vibratory motor-driven separator efficiently recovers sand and gravel from residual concrete. Certified to Chinese National Standard GB/T 2020-0457T-JC (Recycled Light and Coarse Aggregates from Construction Waste for Concrete), it delivers reliable performance for sustainable concrete production.
Item | JZF60D (Single Truck Space) | JZF60DS (Dual Truck Space) |
Separate Capability | ≥50T/H | ≥60T/H |
Machine Power | 14.5KW | 15.9KW |
Circulation of Concrete Mixer Trucks | ≤40 | ≤40 |
Separate Stone Size | ≥5 mm | ≥5 mm |
Separate Sand Size | ≥5 mm | ≥5 mm |
Screen Size (L×W×H) | 4000*1500mm | 4000*1500mm |
Dimensions(L×W×H) | 7200*1800*3000mm | 9200*1800*2600mm |
Overall Weight | ≈4T | ≈4.8T |
>> High-Efficiency Separation Process
✓ ≥5mm aggregates → Directed to stone hoppers via vibration
✓ ≤5mm sand + slurry → Screened into screw conveyors
Achieves ≥99% material recovery for reuse in batching
Processes ≥60 T/H - handles 50+ trucks daily
>> Optimized Vibratory Drive System
Dual heavy-duty vibratory motors (1.5KW standard / 2.2KW dual-bay configuration)
Precision-engineered inclined screening deck (15-20°angle)
Material flow enhancement: Aggregates advance via vibration + gravity
>> Industrial-Grade Construction
Reinforced steel frame withstands continuous operation
Wear-resistant screening mesh (optional polyurethane upgrade)
Corrosion-protected components for slurry environments
>> Premium Automation System
Siemens PLC Control: Fully automated operation with manual override
One-Touch Startup: Simplified operation for all skill levels
Schneider Electric Components: Industrial-grade reliability & surge protection
Seamless integration with concrete batching plant control systems
