Product Introduction
Equipment performance characteristics and advantages

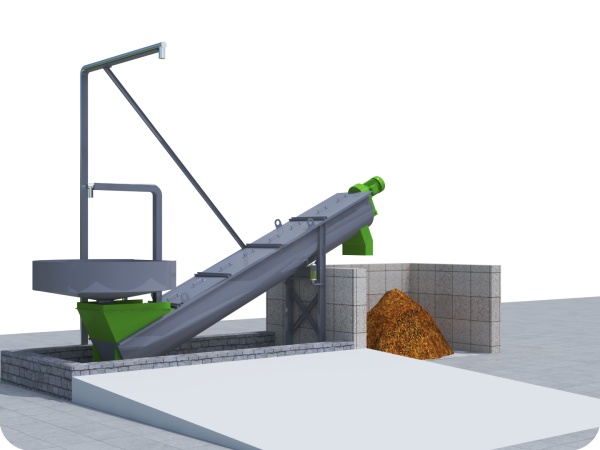

YX5000 spiral sand and gravel separator: This separator is a new product jointly designed and developed by our company's researchers based on the absorption of advanced technologies at home and abroad, combined with the actual situation in our area. This device is mainly used for cleaning the mixer truck in concrete mixing plants and separating the sand, gravel, and water (cement) from the remaining waste concrete. It solves the pollution problem of waste concrete, realizes the recycling and reuse of sand, gravel, water, etc., and to a certain extent saves the production cost of mixing plants on the basis of green environmental protection.
The technical features of this product are compact layout, small footprint, and effective reduction of equipment wear and tear through technical means, increasing equipment service life. The bottom support adopts specially designed long-life bearings; The reducer is selected from the well-known domestic brand "Tailong"; The spiral adopts wear-resistant 500 high wear-resistant steel, which greatly reduces equipment maintenance time and cost.
Technical parameters of YX5000 spiral separator
Name | Parameter | Name | Parameter |
Separation capacity | 20t/h | Dimensions | 5300×2000×2350 |
Installed power | 12.5Kw | Machine weight | 2t |
YX5000 Spiral Separators Configuration Table
Name | Specifications/Features | Unit | Quantity | Supporting Manufacturers | Remark | |
Separator host | motor | YE3-132S-4 | set | 1 | Jiangsu Tailong | supporting equipment |
reducer | PK07-56.25-4-5.5-M1 | |||||
cabin | 16Mn-t6 | YX Homemade | ||||
Spirochete | Φ450 | |||||
outriggers | [12# | |||||
Discharge hopper | Standard | |||||
Flushing components | DN65 galvanized pipe | |||||
Water pumps and components | Sewage submersible pump | 3KW | tower | 1 | YX/Runquan Pump Industry | |
Pump connection kit | Standard | set | 1 | YX | ||
Water pump hanger | Standard | set | 1 | YX Homemade | ||
Hand chain hoist | 1T | tower | 1 | male elephant | ||
Water pump frame | Standard | indivual | 1 | YX Homemade | ||
pipe fittings | Water pipe | DN65 galvanized pipe | rice | several | Tianjin Youfa | Determined according to the plan |
flushing tube | DN65 galvanized pipe | rice | several | Tianjin Youfa | ||
pipe fittings | DN65 | indivual | several | YX | ||
electrical system | Controller | PLC/Relay | tower | 1 | Siemens/Chint | |
AC contactor | NXC series | tower | 2 | Chint | ||
Motor circuit breaker | NS2 series | tower | 2 | Chint | ||
Molded case circuit breakers | 125A, etc. | tower | 1 | Chint | ||
Buttons/knobs | indivual | 3 | Chint | |||
indicator light | indivual | 3 | Chint | |||
control cabinet | Waterproof | indivual | 1 | Xuzhou | ||
Intermediate relay | 220V | set | 1 | Chint | ||
warning light | 220V | indivual | 1 | Formosa Plastics Corporation | ||
Cables | National Standard | rice | several | YX | ||
appendix | National Standard | indivual | several | |||
Button box assembly | Cabinet | 300*200 | indivual | 1 | Xuzhou | |
Button | indivual | 2 | Chint | |||
bracket | indivual | 1 | YX Homemade | |||
Lubrication system | Automatic lubrication pump | 220V | tower | 1 | Rongxing Technology | |
Lubricating oil pipe | Standard | set | 1 | Rongxing Technology | ||
Cables | cable | 3*2.5 | rice | 30 | YX Optimum | Determined according to the plan |
appendix | appendix | set | 1 | YX Optimum | ||
Note: The specifications/features, quantities, etc. listed in the table are standard configuration related parameters, and actual parameters may change due to changes in specific plans. As a component of zero sewage discharge, the electrical system is uniformly deployed in the zero sewage discharge control system. | ||||||
