JGF40 Concrete Reclaimer (Drum Screen-Type) Single Truck Space

JGF40 Concrete Reclaimer (Drum Screen-Type) Single Truck Space
Product Introduction:

JGF40 Concrete Reclaimer (Drum Screen-Type) Dual Truck Space


The JGF40 Drum Screen Concrete Reclaimer features a simple and compact design for continuous and stable operation. It is ideally suited for ready-mix plants operating 10 to 30 trucks with an annual production exceeding 150,000 tons. Proven in the market for nearly 30 years, this reliable model remains widely used in numerous engineering plants today.


> High-Capacity Compact Design

> High-pressure Water Conveying

> Post-cycle Flushing Prevents Screen Blinding

> No Vibration Motors or Complex Mechanisms

> 99% Sand & Gravel Recovery Rate


Send Inquiry
Description

Ideal for Concrete Batching Plants

JLF40 Eco-Recycling System integrates three core subsystems – separation, water management, and electrical control – to deliver fully automated concrete waste processing. When concrete mixer trucks discharge residual concrete into the wash bay, waste material enters the feeding hopper where high-pressure water jets propel it clog-free into the rotary drum separator. Inside the drum, aggregates undergo precision separation: stones discharge through the rock outlet and sand exits via the sand outlet, both directly conveyed by loaders for reuse. Simultaneously, overflow slurry enters a multi-stage sedimentation system where suspended solids settle progressively; clarified water then flows into the clean water reservoir for recirculation, achieving zero wastewater discharge. Governed by a Siemens PLC control system, this closed-loop operation features automatic drum cleaning cycles and real-time process optimization – eliminating freshwater consumption while maximizing aggregate recovery for sustainable batching plant operations.


Item

JGF40 Concrete Reclaimer (Single Truck Space)JGF40 Concrete Reclaimer (Dual Truck Space)

Separate Capability

≥30T/H≥40T/H

Machine Power

11.5KW (With water pump)15.9KW (With water pump)

Circulation of Concrete Mixer Trucks

≤20≤40

Separate Stone size

1-6 mm1-6 mm

Separate Sand Size

1-6 mm1-6 mm

Separation Cylinder Size

Φ1500*3400mmΦ1500*3400mm

Feeding Hopper Size (L×W×H)

3000*900mm6000*900mm

Dimensions(L×W×H)

4500*1800*1750mm4500*1800*1750mm

Overall Weight

≈3.5T≈4.8T

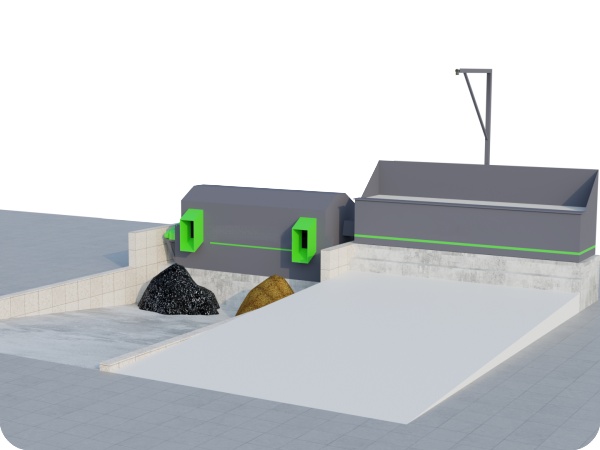

>> Separation System

The separation system is the main part of this equipment, which is mainly composed of a trough machine and a separator. The waste in the trough machine is flushed into the separator by high-pressure water flow. The drum of the separator is driven by the reduction mechanism to rotate for screening. The overflowing slurry is discharged through the drain port into the sedimentation tank for step-by-step sedimentation. Then it flows into the clean water tank.


>> Application & Matching Guide

Applicable Plant Size：Ideal for JJHS50 - JJHS60 Concrete Batching Plants.

Truck Matching：Supports 2 Transit Mixers simultaneously.

Industry Use：Pre-cast concrete plants, Ready-mix concrete stations, and Environmental recycling centers.


>> Packaging, Shipping & Service

Standard export seaworthy packaging / Nude packing in 20GP/40HQ container.

15-20 Days after deposit.

1-Year Warranty, 24/7 Online Technical Support, Video Installation Guidance.
